Advanced Vinyl Windows
Introducing Advanced Window Corp., a prominent Chicago-based manufacturer since 1995, widely recognized for producing high-quality vinyl windows with full product customization capabilities, a commitment to affordability, and adherence to Energy Star standards.
Providing high-quality products at a reasonable cost, the 6300 Series from Advanced Windows stands out as a competitive choice, offering a comprehensive package of beauty, efficiency, and durability. The windows in this collection are designed to be low-maintenance, making them an excellent option for both new homeowners and those with busy lifestyles.
Additionally, these windows are Energy Star rated, appealing to environmentally conscious individuals. The 6300 Series is also customizable, featuring a diverse range of designs, styles, and detailing options, including triple-pane glass, woodgrain interiors, and an array of exterior colors. This ensures that you can find the perfect aesthetic for your home.
6300 SYSTEM SERIES
- The 6300 Series offers superior energy efficiency, surpassing Energy Star requirements for increased home comfort and lower energy bills.
- Ideal for renovation or new construction, the colonial design enhances luxury and follows current design trends.
- Available in a range of colors, including eco-friendly options, the profiles are made of 100% recyclable vinyl for durability in harsh weather.
- Internal walls enhance thermal and structural performance, while a larger chamber allows for galvanized steel reinforcements without creating cold bridges, ensuring strong joints.
- The 3-1/4” window frame features a mullion groove design for easy connections and various installation options.
All of the 6300 products are available with a huge selection of optimized glazing options, LoE and gas fill types, warm edge spacer systems like UltraSpacer® and SuperSpacer® and Neat® coating on external glass surface for easier cleaning.
6300 SYSTEM SERIES
DOUBLE HUNG
CASEMENT
SLIDING
AWNING

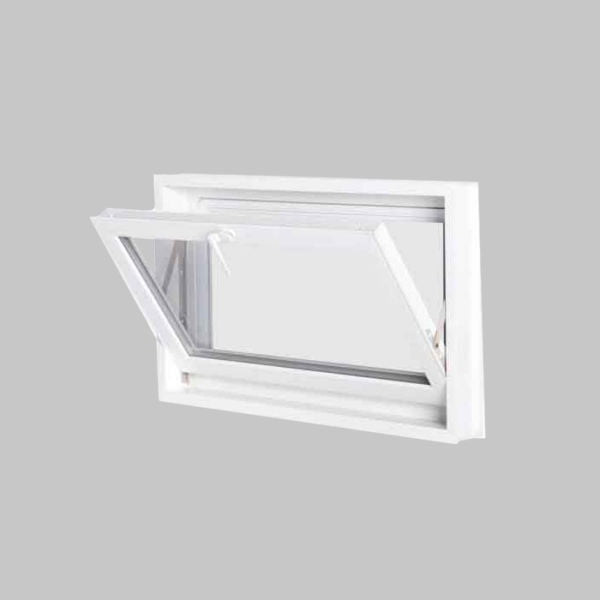

HOOPER

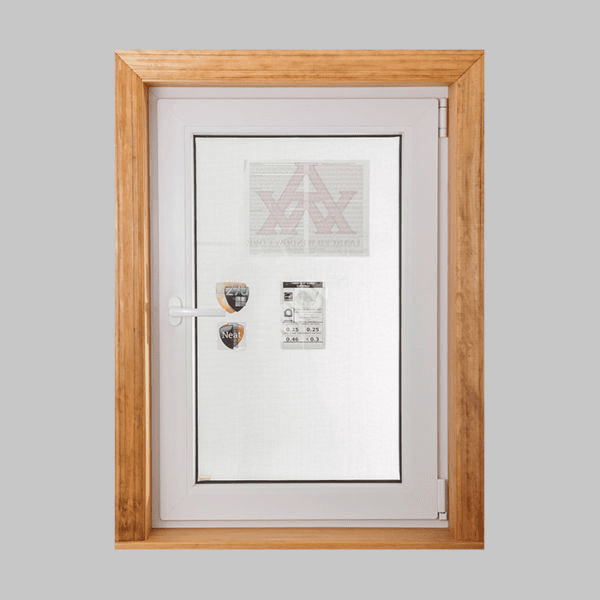

TILT-TURN
6300 SYSTEM STANDARD FEATURES
- Lifetime Limited Warranty
- 100% virgin vinyl engineered for extreme weather durability without additional care
- Fusion welded sashes and frames
- The colonial design exudes elegance, enhances luxury, and complements top design trends
- Interconnectivity between all products
- Structural joint reinforcement system
- Double or triple glazing
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Assortment of “Art-Wood” finishes
- Multiple Low-E and gas fill options
- Decorative internal or external grid
- Accessory profiles like: couplers, brick moldings, nail fin
- All products exceed the newest Energy Star requirements

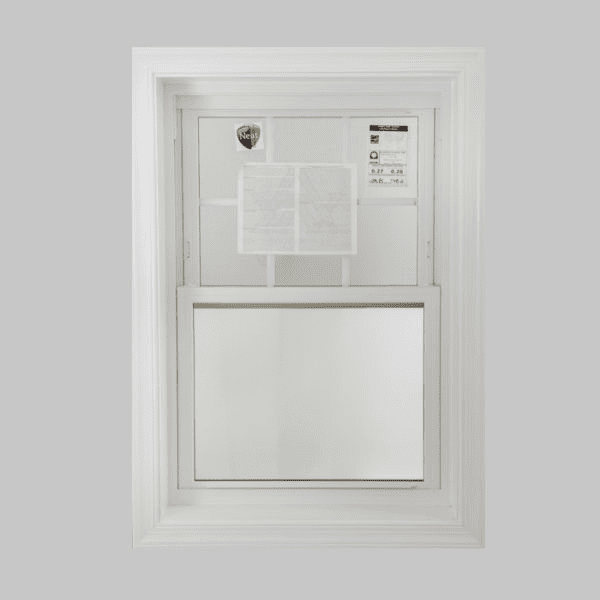

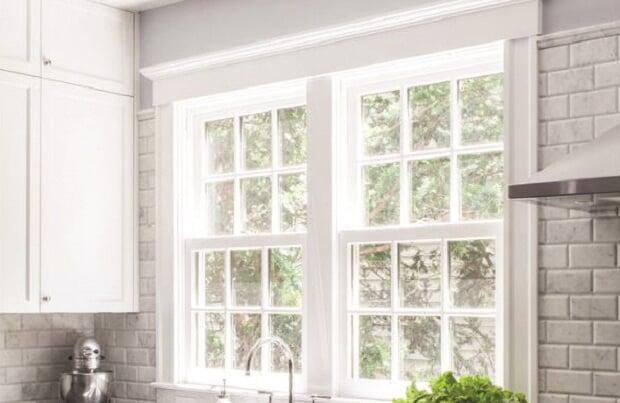

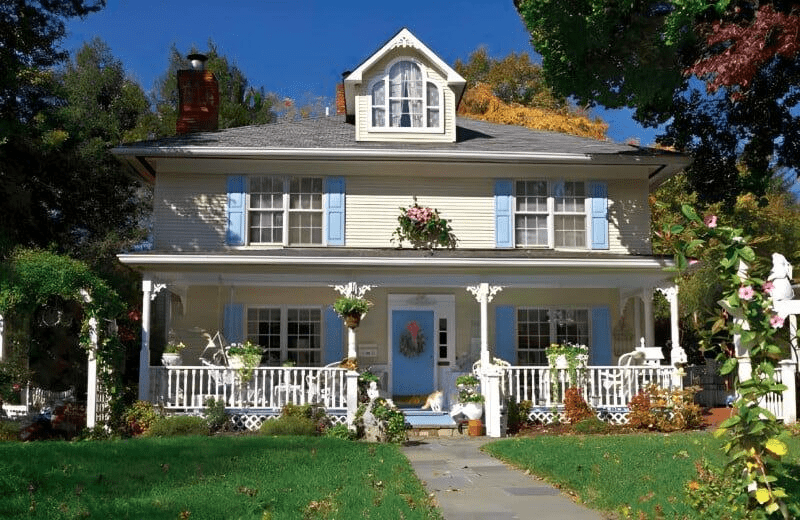

The 6300 Double Hung Windows feature operable top and bottom sashes that can move up and down, tilt in for convenient cleaning, and include night latches for secure ventilation.
- 3-1/4” frame depth with mullion grooves
- Full sloped sill
- Meeting rail profiles with integrated interlock system, reducing air infiltration and increasing security
- High density internal wall design to increase thermal, structural and acoustical performances
- Excellent strength of fully welded joint connection of frame and sash
- Both top and bottom sahes are operable
- Constant force balancer system
- Tilt-in option for easy cleaning
- Night latches for secure venting
- Zinc die casted cam locks and keepers
- Double or triple optimized insulated glass units (double glazed u-value as low as 0.23, triple glazed u-value as low as 0.19)
- Optional galvanized steel reinforcements for both of the sash meeting rails, vertical stiles and frame-sill profile encapsulated with insulating internal chambers
- Externally glazed to reduce air or water leakage
- Triple gasket system to seal sash members and frame against each other
- Extruded aluminum frame half screen with fiberglass mesh
- Custom sizes
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Standard and optional interior laminates; woodgrain or solid colors
- Assortment of “Art-Wood” finishes
- Multiple LoE and gas fill options
- Decorative internal grid systems
- Oriel windows with custom split
- Accessory profiles like: couplers, brick moldings & nail fin
- Full screen, aluminum or pet resistant mesh
- Different hardware options
- Internal blinds
Standard External Colors & Finishes
 |  |  |  |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| |  |  |
| White | Almond | Light Oak | Dark Oak |

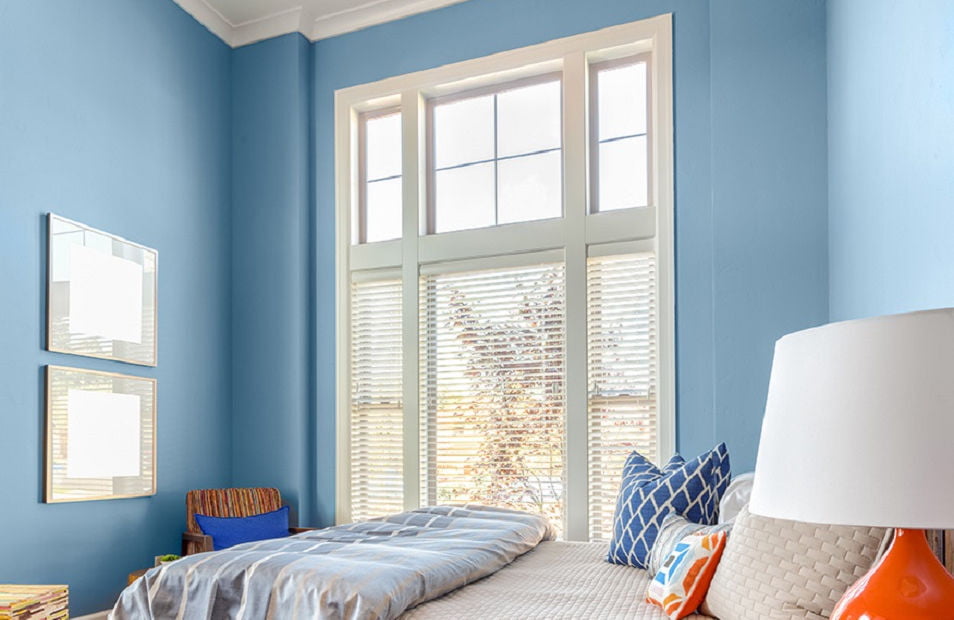

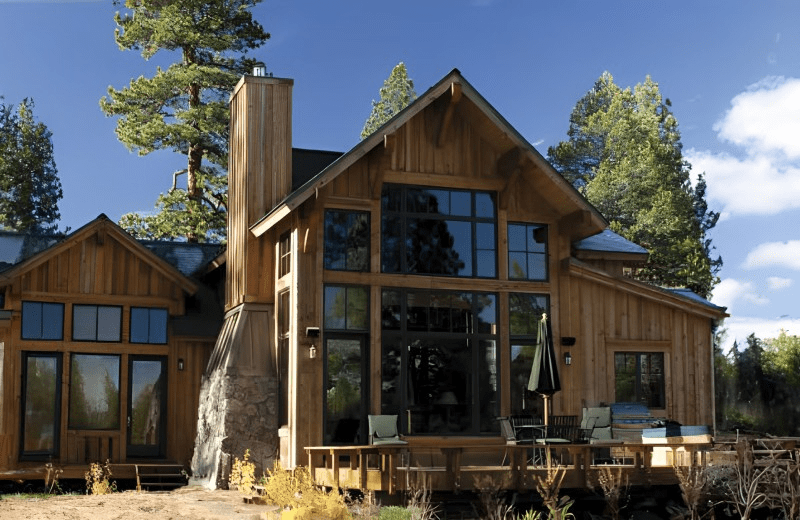

The 6300 Picture Window complements the 6300 Double Hung or Slider windows seamlessly, while the 6300 Picture Large and Small Frame windows elevate the 6300 Casement and Awning windows; furthermore, all 6300 Fixed windows surpass Energy Star standards.
FEATURES:
- 3-1/4” frame depth with mullion grooves
- High density internal wall design to increase thermal, structural, and acoustical performances
- Excellent strength of fully welded joint connection of frame
- Direct inside glazing for easy access and increased security
- Double or triple insulated glass units (double glazed u-value as low as 0.22, triple glazed u-value as low as 0.15)
- Custom sizes
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Standard and optional interior laminates; woodgrain or solid colors
- Assortment of Art-Wood finishes,
multiple LoE and gas fill options - Decorative internal or external grid systems
- Accesory profiles like: couplers, brick moldings & nail fin
- Internal blinds
Standard External Colors & Finishes
| | | |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| | | |
| White | Almond | Light Oak | Dark Oak |

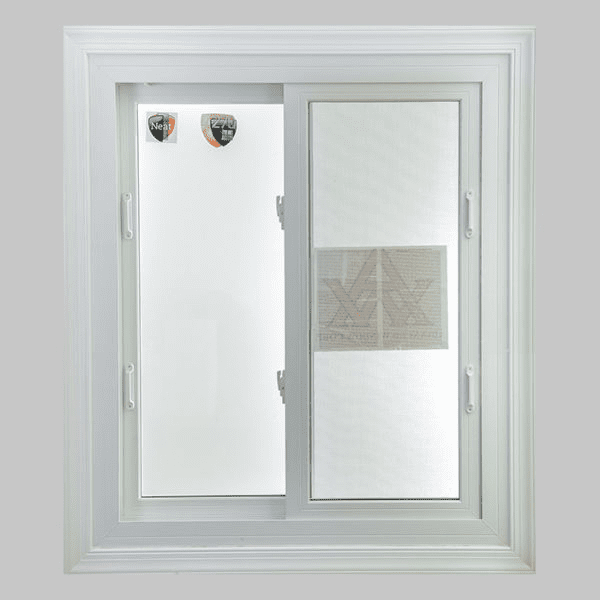

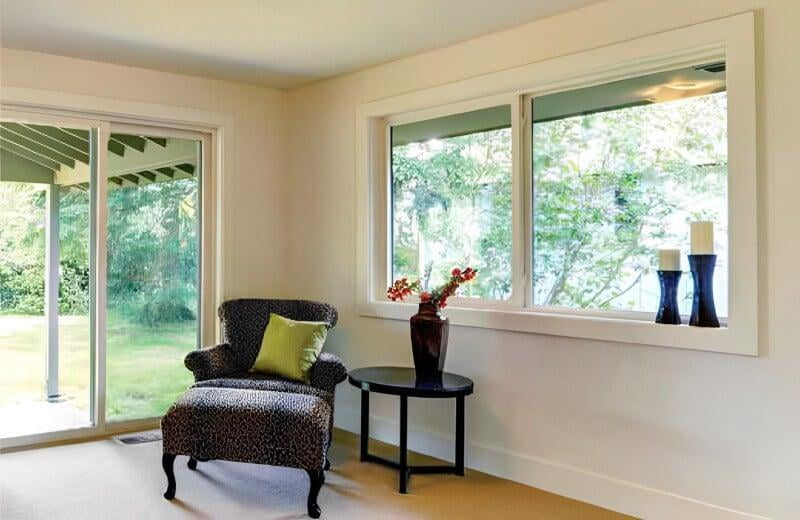

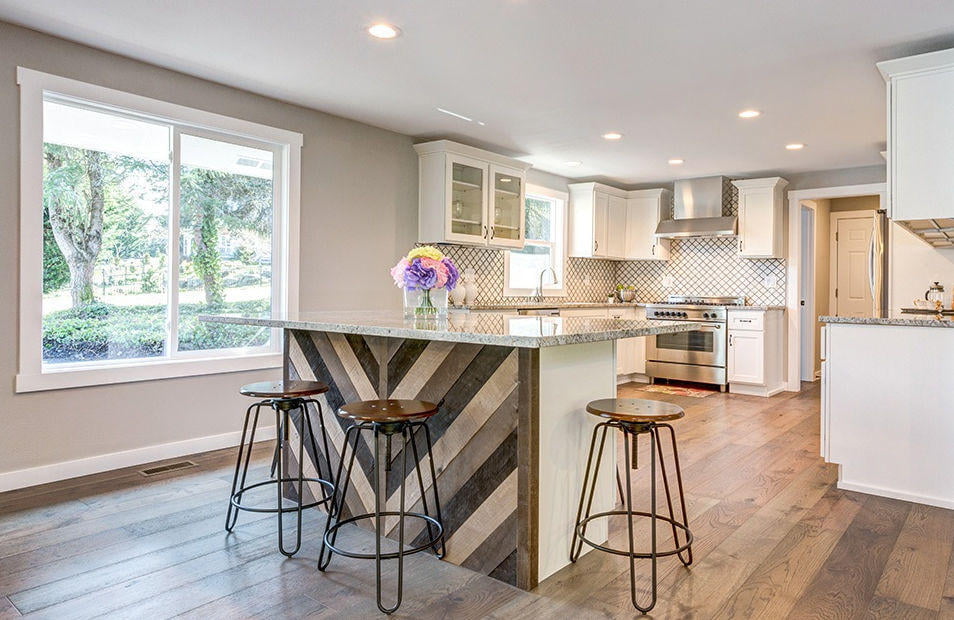

Often enough, it is a more economical way to enhance the home. The 6300 Slider Window’s thermal values exceed the newest Energy Star standards.
FEATURES:
- 3-1/4” frame depth with mullion grooves
- Meeting rail profiles with integrated interlock system reducing air infiltration and increasing security
- High density internal wall design to increase thermal, structural and acoustical performances
- Excellent strength of fully welded joint connection of frame and sash
- Lift option for sash removal
- Side sashes operable
- Anti-lift insert for increased security
- Night latches for secure venting
- Zinc die casted cam locks and keepers
- Double rollers for easy sash movements
- Double or triple optimized insulated glass units (double glazed u-value as low as 0.23, triple glazed u-value as low as 0.20)
- Optional galvanized steel reinforcements for both of the sash meeting rails encapsulated with insulating internal chambers
- Externally glazed to reduce air or water leakage
- Custom sizes
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Multiple LoE and gas fill options
- Decorative internal grid systems
- Accessory profiles: couplers, brick mouldings, nail fin
- Full screen, aluminum or pet resistant mesh
- Different hardware options
Standard External Colors & Finishes
| | | |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| |
| White | Almond |

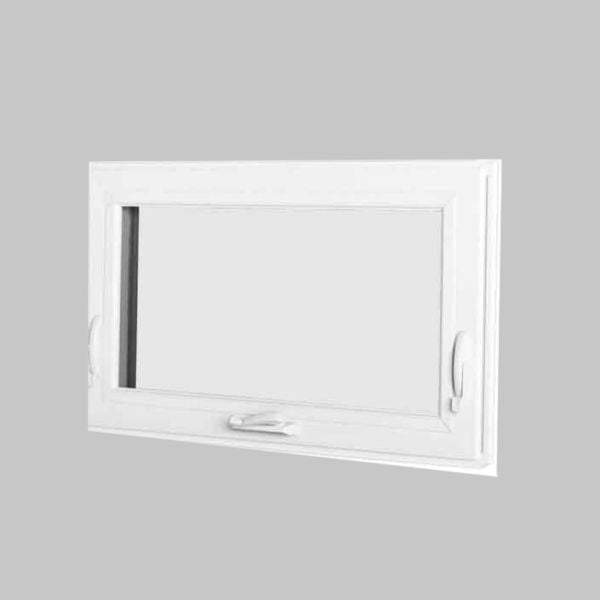

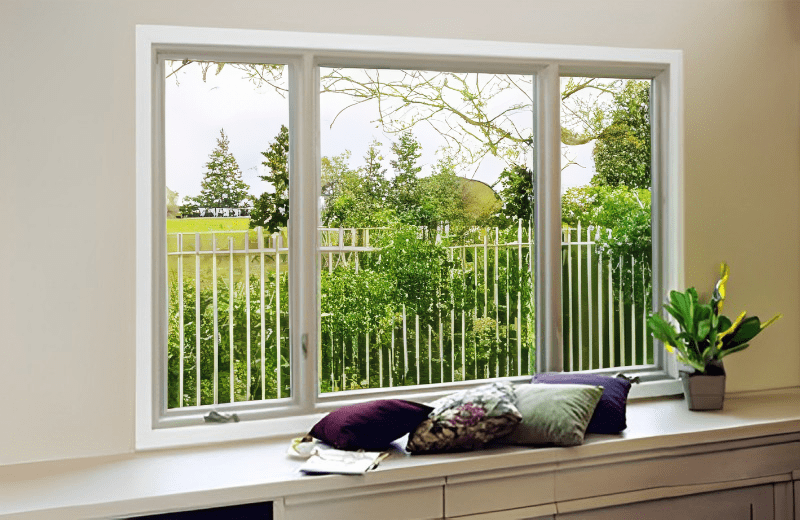

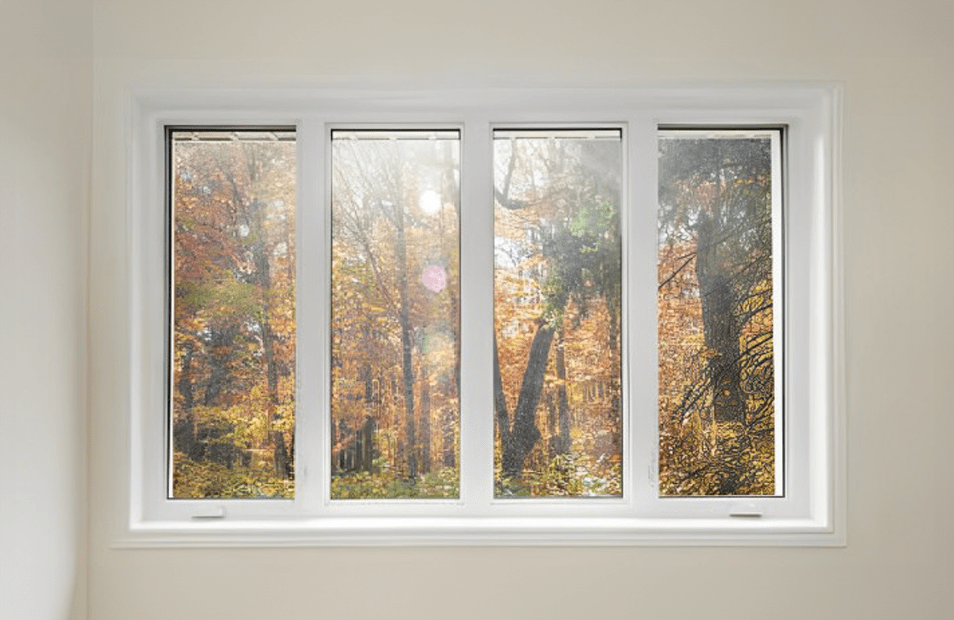

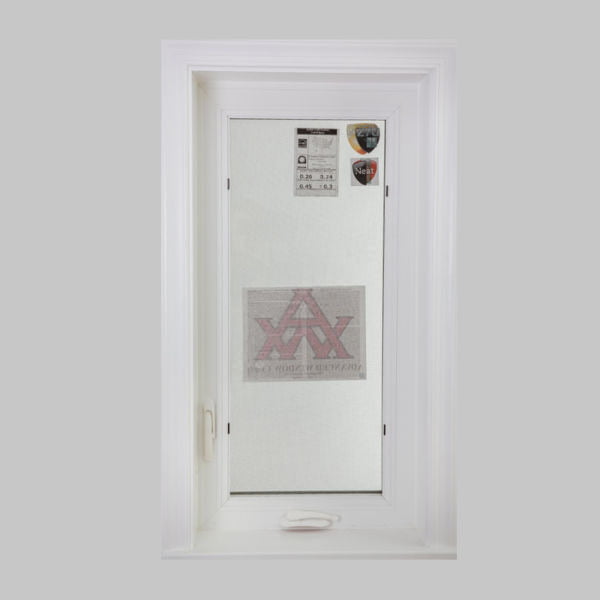

Casement / Awning Windows present an excellent solution for challenging projects.
FEATURES:
- 3-1/4” frame depth with mullion grooves
- High density internal wall design to increase thermal, structural and acoustical performances
- Excellent strength of fully welded joint connection of frame and sash
- 2 rows of continuous rubber compression seals with an additional pile weather seal
- Optional galvanized steel reinforcements for the sash rails encapsulated with insulating internal chambers
- Double or triple optimized insulated glass units (double glazed u-value as low as 0.22, triple glazed u-value as low as 0.16)
- Internally glazed for easy access and increased security
- Roto’s Fold-Away Handle
- Roto’s Pro-Drive Multi-Point Locking Hardware System with compression adjustability
- Roto’s Pro-Drive concealed heavy duty hinges
- Roto’s X-Drive operators
- Extruded aluminum screen frame with low visible insect mesh
- Custom sizes
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Available laminated options in woodgrain patterns inside and/or outside
- Assortment of “Art-Wood” finishes
- Multiple LoE and gas fill options
- Decorative internal or external grid systems
- Accessory profiles: couplers, brick mouldings and nail fin
- Egress hardware for wider opening in Casement windows
- Different hardware finish options
- Aluminum or pet resistant screen mesh
- Internal blinds
Standard External Colors & Finishes
| | | |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| | | |
| White | Almond | Light Oak | Dark Oak |

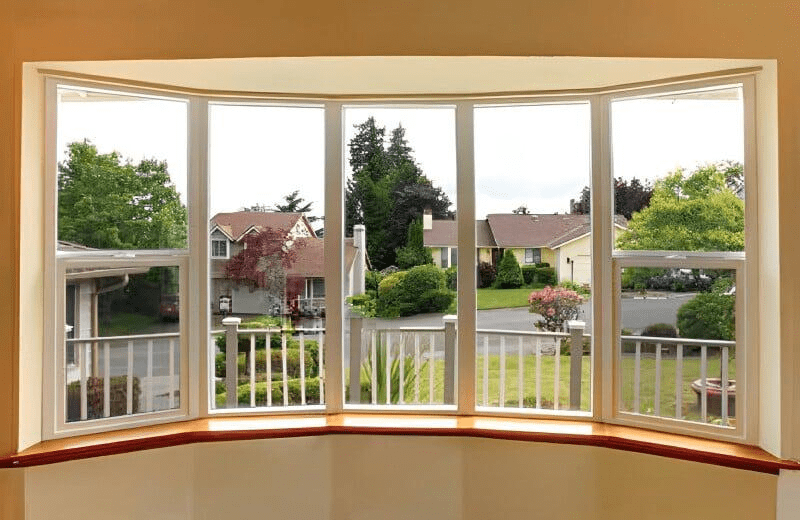

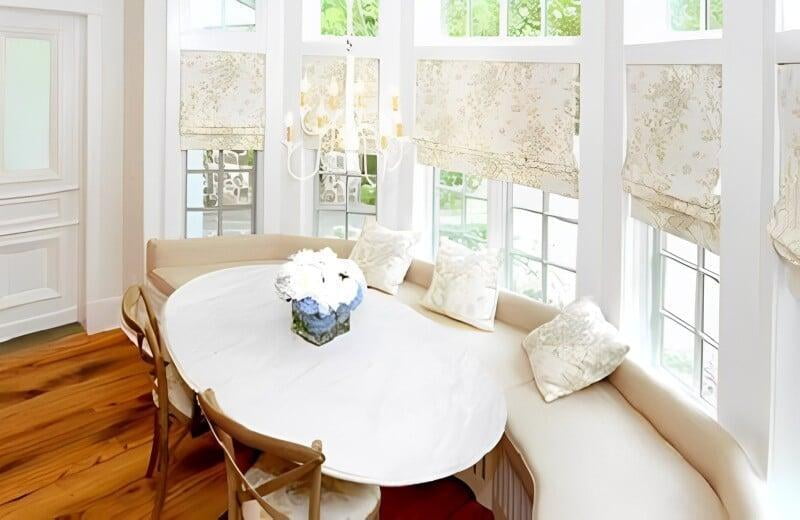

The flexibility in the number of panels, angles, and finishing options in Bay & Bow Windows satisfies the desire to enlarge living spaces with more room, increased light, and an added touch of beauty.
FEATURES:
- Head, Jamb and Seat Boards constructed with 1-1/4” externally graded engineered plywood coated with PVC film to protect plywood from outside moisture penetration
- Zinc plated heavy duty brace and rod supporting system increasing unit rigidity and allowing for easy unit hanging and/or bottom supporting
- Color matching external finishing profiles
- Color matching internal finishing trims
- Custom sizes
- Real wood internal veneer on plywood elements for natural feel and beauty
OPTIONS:
- 3-6 window sections up to 12’ wide
- Solid white or tan colors
- Untreated Natural Oak or Birch veneer as internal plywood finish
- Windows and trim profiles with unlimited color options painted with Eco-friendly water based paints
- Assortment of “Art-Wood” finishes and laminated woodgrain patterns
- 2” high density ridged foam insulation for the seat board with cPVC external finishing trim profile
- Optional cable supportive system
Standard External Colors & Finishes
| | | |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| | | |
| White | Almond | Light Oak | Dark Oak |

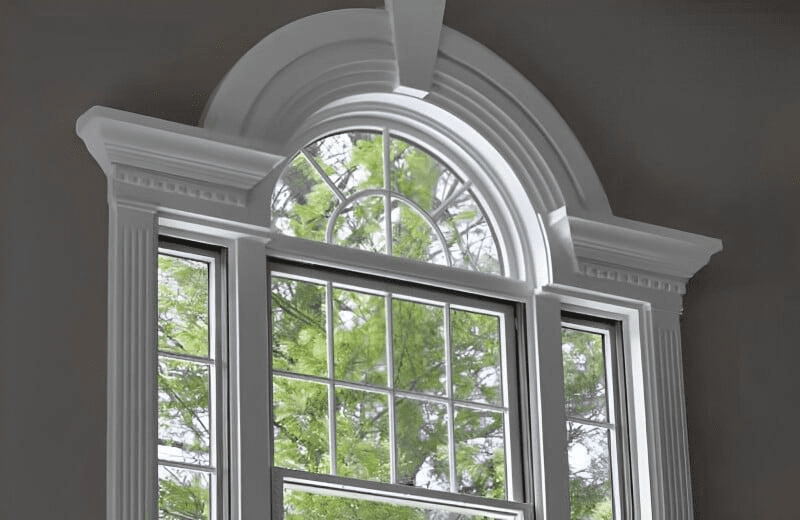

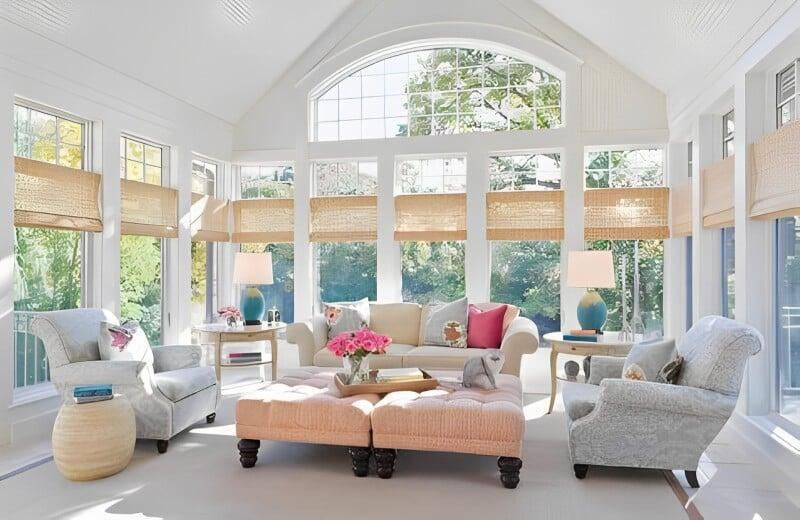

Architectural Shapes serve as a means to enhance the aesthetic appeal of any home. Non-operating windows of this kind introduce light and style while upholding energy efficiency.
FEATURES:
- 3-1/4” frame depth with mullion grooves
- High density internal wall design to increase thermal, structural and acoustical performances
- Excellent strenth of fully welded joint connection of frame
- Interior glazing with double or triple glass insulated glass units
- Wide range of different shapes
- Custom sizes
- Connectivity with all 6300 Series windows
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Assortment of “Art-Wood” finishes
- Multiple LoE and gas fill options
- Decorative internal or external grid
- Accessory profiles like: couplers, brick mouldings and nail fin
Standard External Colors & Finishes
| | | |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| | | |
| White | Almond | Light Oak | Dark Oak |
