Advanced Sliding Patio Doors
Introducing Advanced Window Corp., a prominent Chicago-based manufacturer since 1995, widely recognized for producing high-quality vinyl windows with full product customization capabilities, a commitment to affordability, and adherence to Energy Star standards.

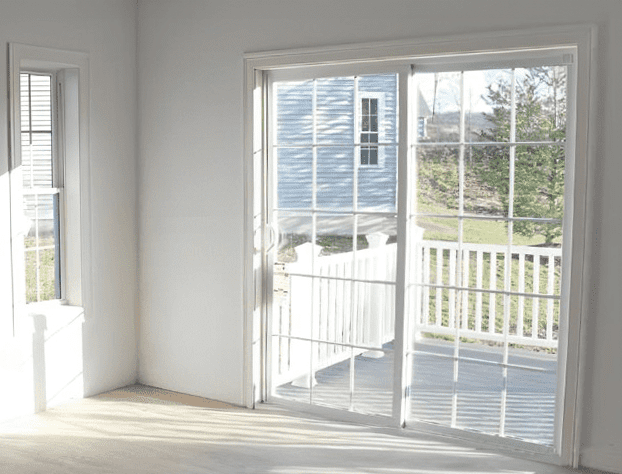

The 6300 Series Sliding Patio Door is a testament to modern engineering, offering an abundance of natural light that becomes especially valuable in spaces with limited room to spare. Its weather-resistant, robust, and secure construction not only enhances the visual appeal of any estate but also ensures longevity, providing you with a lifetime investment.
In exceeding the latest Energy Star ratings, the 6300 Sliding Door units bring efficiency and sustainability to the forefront. Reinforced with structural steel, these doors, when coupled with available side panels or transoms, are capable of glazing large openings, adding both style and structural integrity to your living spaces.
FEATURES:
- 4-7/8” frame depth with mullion grooves and integrated nailing fin for optional new construction installation
- 3 Standard 2-panel doors width sizes: 5’, 6’ and 8’; all with 6’-8” height
- Custom sizes available
- Single sash operable, left or right handed
- High density internal wall design to increase thermal, structural, and acoustical performances
- Meeting rail profiles with integrated interlock system, reducing air infiltration
- Excellent strength of fully welded joint connection of frame and sash
- Equal lite
- Lift option for sash removal
- Anti-lift insert for increased security
- Anodized aluminum threshold with Q-LON gasket
- Anodized aluminum screen track
- Stainless steel sash roller track
- Double tandem concealed steel rollers, adjustable, with steel bearing
- 2-point mortise lock with narrow line
- Intuition Handle with semi-automatic closure and opening function
- Keyed outside metal pull handle, powder coated
- Secondary, 2 position Foot Lock for increased security and controlled ventilation
- Lockable extruded aluminum screen for durability with fiberglass screen mesh
- Internally glazed for increased security
- Double or triple glass options (on door: double glazed u-value as low as 0.23, triple glazed u-value as low as 0.18, on fixed unit: double glazed u-value as low as 0.22, triple glazed u-value as low as 0.16
- Galvanized steel reinforcements for both, sash and fixed mullion encapsulated with insulating interior chambers
---
FEATURES:
- 4-7/8” frame depth with mullion grooves and integrated nailing fin for optional new construction installation
- 3 Standard 2-panel doors width sizes: 5’, 6’ and 8’; all with 6’-8” height
- Custom sizes available
- Single sash operable, left or right handed
- High density internal wall design to increase thermal, structural, and acoustical performances
- Meeting rail profiles with integrated interlock system, reducing air infiltration
- Excellent strength of fully welded joint connection of frame and sash
- Equal lite
- Lift option for sash removal
- Anti-lift insert for increased security
- Anodized aluminum threshold with Q-LON gasket
- Anodized aluminum screen track
- Stainless steel sash roller track
- Double tandem concealed steel rollers, adjustable, with steel bearing
- 2-point mortise lock with narrow line
- Intuition Handle with semi-automatic closure and opening function
- Keyed outside metal pull handle, powder coated
- Secondary, 2 position Foot Lock for increased security and controlled ventilation
- Lockable extruded aluminum screen for durability with fiberglass screen mesh
- Internally glazed for increased security
- Double or triple glass options (on door: double glazed u-value as low as 0.23, triple glazed u-value as low as 0.18, on fixed unit: double glazed u-value as low as 0.22, triple glazed u-value as low as 0.16
- Galvanized steel reinforcements for both, sash and fixed mullion encapsulated with insulating interior chambers
---
OPTIONS:
- Solid white or tan colors
- Unlimited color options painted with Eco-friendly water based paints
- Assortment of “Art-Wood” finishes
- Powder coated color choices and metallic finishes for Handle options
- 4-point locking mortise lock
- Multiple LoE and gas fill options
- Decorative internal or external grid
- Accessory profiles like: couplers, brick moldings and nail fin
- Aluminum or pet resistant screen mesh
- Internal blinds
The impressive 6300 Series Sliding Patio Doors offer abundant natural light, particularly beneficial in compact spaces. Boasting a cutting-edge design, these doors are not only weather-resistant but also exhibit strength, durability, and top-notch security features.
Standard External Colors & Finishes
 |  |  |  |
| White | Almond | Bronze | Black |
Standard Internal Colors & Finishes
| |
| White | Almond |
